Search Operation on Android online Database JSON

Search Operation on Android online Database JSON

For the database setup, please refer to http://blog.kerul.net/2014/04/insert-new-record-on-android-online.html

INTRODUCTION

This tutorial will demonstrate how to retrieve an records form an online database. We are using the JSON data format to transfer the database content to the Android client.

search-UI display-result list

STEP 1: JSON DATA FORMAT GENERATOR (server-side)

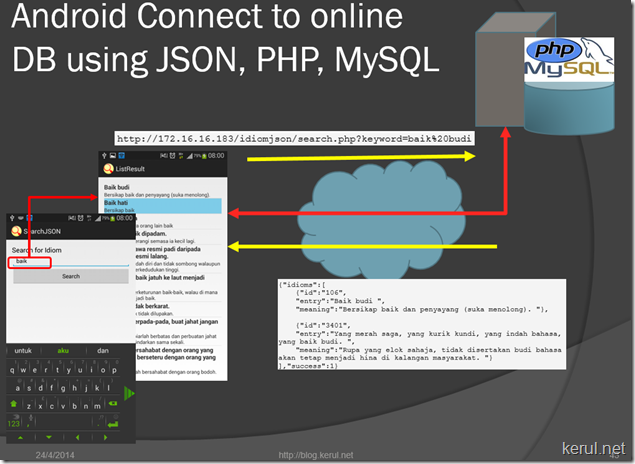

android-json-php-mysql-illustration
Overview illustration (click to enlarge)

In order to fetch records form the database, we will use the JSON data format generator using the PHP script. Add this file named search.php to the existing folder in the idiomjson folder, in htdocs. (Refer STEP 1 of this article http://blog.kerul.net/2014/04/insert-new-record-on-android-online.html)

search-php

search.php

<?php
//search.php
/*
* Following code will search idiom based on keywords
*/

// array for JSON response
$response = array();

// include connect class
require_once __DIR__ . /connect.php;

// connecting to db
$db = new DB_CONNECT();

$keyword=$_GET["keyword"];
// get idioms based on keyword
/*
$result = mysql_query("SELECT * FROM a_senarai_e WHERE " .
"MATCH(entri) AGAINST ($keyword ".
"IN NATURAL LANGUAGE MODE)") or die(mysql_error());
*/

//using LIKE
$result = mysql_query("SELECT * FROM idiomlist WHERE entry LIKE %$keyword% LIMIT 0, 20")
or die(mysql_error());

// check for empty result
if (mysql_num_rows($result) > 0) {
// looping through all results
$response["idioms"] = array();

while ($row = mysql_fetch_array($result)) {
// temp user array
$idioms= array();
$idioms["id"] = $row["id"];
$idioms["entry"] = $row["entry"];
$idioms["meaning"] = $row["meaning"];

// push single idiom array into final response array
array_push($response["idioms"], $idioms);
}
// success
$response["success"] = 1;

// echoing JSON response
echo json_encode($response);
} else {
// no products found
$response["success"] = 0;
$response["message"] = "No idioms found";

// echo no users JSON
echo json_encode($response);
}
?>


When the page is called directly from the browser, this is the JSON formatted data you will see.


http://172.16.16.183/idiomjson/search.php?keyword=baik%20budi

{"idioms":[
{"id":"106",
"entry":"Baik budi ",
"meaning":"Bersikap baik dan penyayang (suka menolong). "},

{"id":"3401",
"entry":"Yang merah saga, yang kurik kundi, yang indah bahasa, yang baik budi. ",
"meaning":"Rupa yang elok sahaja, tidak disertakan budi bahasa akan tetap menjadi hina di kalangan masyarakat. "}
],"success":1}


STEP 2: CREATE A NEW PROJECT IN ECLIPSE-ADT (Android client-side)


new-project-search-json


The UI consist of an EditText with id txtkeyword, and a Button id btnsearch.


This is the UI XML file


<RelativeLayout >="http://schemas.android.com/apk/res/android"
>="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context=".Search" >

<TableLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentBottom="true"
android:layout_alignParentLeft="true"
android:layout_alignParentRight="true"
android:layout_alignParentTop="true" >

<TableRow
android:id="@+id/tableRow1"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >

<TextView
android:id="@+id/textView1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Search for Idiom"
android:textAppearance="?android:attr/textAppearanceLarge" />

</TableRow>

<TableRow
android:id="@+id/tableRow2"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >

<EditText
android:id="@+id/txtkeyword"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:ems="10" >

<requestFocus />
</EditText>

</TableRow>

<TableRow
android:id="@+id/tableRow3"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >

<Button
android:id="@+id/btnsearch"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="Search" />

</TableRow>

<TableRow
android:id="@+id/tableRow4"
android:layout_width="wrap_content"
android:layout_height="wrap_content" >
</TableRow>
</TableLayout>

</RelativeLayout>


Search.java


This is only has the UI of the keyword entry. It will be calling another page/screen which will list the idioms that match the search keyword.


package net.kerul.searchjson;//change this to ur package name

import android.os.Bundle;
import android.app.Activity;
import android.content.Intent;
import android.view.Menu;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;

public class Search extends Activity implements OnClickListener {
private EditText txtkeyword;
private Button btnsearch;

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_search);

//link to UI
txtkeyword=(EditText)findViewById(R.id.txtkeyword);
btnsearch=(Button)findViewById(R.id.btnsearch);
btnsearch.setOnClickListener(this);
}
@Override
public void onClick(View v) {
if(v.getId()==R.id.btnsearch){
Intent searchIntent = new Intent(this, Search.class);
//send the keyword to the next screen
searchIntent.putExtra("key",txtkeyword.getText().toString());
//call the screen for listing
startActivity(searchIntent);
}

}

@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.search, menu);
return true;
}

}


Create the ListView named ListResult activity to handle the result listing.


To create a new activity, right click on project and choose New –> Other…


Use the name ListResult for the new activity.






new-android-activitynew-activity-ListResult

inside this UI XML file copy paste the following XML code. It must have ListView with the id named list.


activity_list_result.xml


<RelativeLayout >="http://schemas.android.com/apk/res/android"
>="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context=".ListResult" >

<!-- Main ListView
Always give id value as list(@android:id/list)
-->
<ListView
android:id="@android:id/list"
android:layout_width="fill_parent"
android:layout_height="wrap_content"/>

</RelativeLayout>


Then add another XML file in the layout folder, by right clicking on the layout folder->New->Android XML File. This is to show the record. It will be reiterated for all records successfully fetched. It must be named list_view.xml; it will be called by activity_list_result.xml to populate the idiom data.


new-xml-file


list_item_xml


list_view.xml


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout >="http://schemas.android.com/apk/res/android"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:orientation="vertical" >

<!-- Idioms id will be HIDDEN - used to pass to other activity -->
<TextView
android:id="@+id/id"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:visibility="gone" />

<!-- Entry data display -->
<TextView
android:id="@+id/entry"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:textSize="17dip"
android:textStyle="bold" />
<!-- the Meaning data display -->
<TextView
android:id="@+id/meaning"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:textSize="14dip" />

</LinearLayout>


and the ListResult.java file to do the fetch record and display processes.


ListResult.java


package net.kerul.searchjson;//change to your package name

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;

import org.apache.http.NameValuePair;
import org.apache.http.message.BasicNameValuePair;
import org.json.JSONArray;
import org.json.JSONException;
import org.json.JSONObject;

import android.app.ListActivity;
import android.app.ProgressDialog;
import android.content.Intent;
import android.os.AsyncTask;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ListAdapter;
import android.widget.ListView;
import android.widget.SimpleAdapter;
import android.widget.TextView;
import android.widget.Toast;

public class ListResult extends ListActivity {

// Progress Dialog
private ProgressDialog pDialog;

// Creating JSON Parser object
JSONParser jParser = new JSONParser();

ArrayList<HashMap<String, String>> idiomsList;

// url to get the idiom list
private static String url_search = "http://172.16.16.183/idiomjson/search.php";

// JSON Node names
private static final String TAG_SUCCESS = "success";
private static final String TAG_IDIOMS = "idioms";
private static final String TAG_ID = "id";
private static final String TAG_ENTRY = "entry";
private static final String TAG_MEANING = "meaning";

// products JSONArray
JSONArray idioms = null;
//search key value
public String searchkey;

@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_list_result);
Intent myIntent = getIntent();
// gets the arguments from previously created intent
searchkey = myIntent.getStringExtra("keyword");

// Hashmap for ListView
idiomsList = new ArrayList<HashMap<String, String>>();

// Loading idioms in Background Thread
